Chris Garrett asymmetrical

Stu Nettle picture
Stu Nettle (stunet)
The Depth Test

1_48.jpg“Free your mind and your ass will follow.”
George Clinton, P-Funk.

There are only two reactions when people lay eyes on my new board: attraction or repulsion. They either ask a question or screw their face. Indifference, it would seem, is impossible.

What sort of board would cause such a response? One that deviates from the norm of course. The board is a Chris Garrett asymmetrical 's-tail' quad. 5'8” on the heel side, 5'10” on the toe side.

The planshape is symmetrical from the nose to just before the tail where it pulls in two inches shorter on the heel side than on the toe. The fins are symmetrical across the stringer but, again, they're two inches forward on the heel side than the toe side.

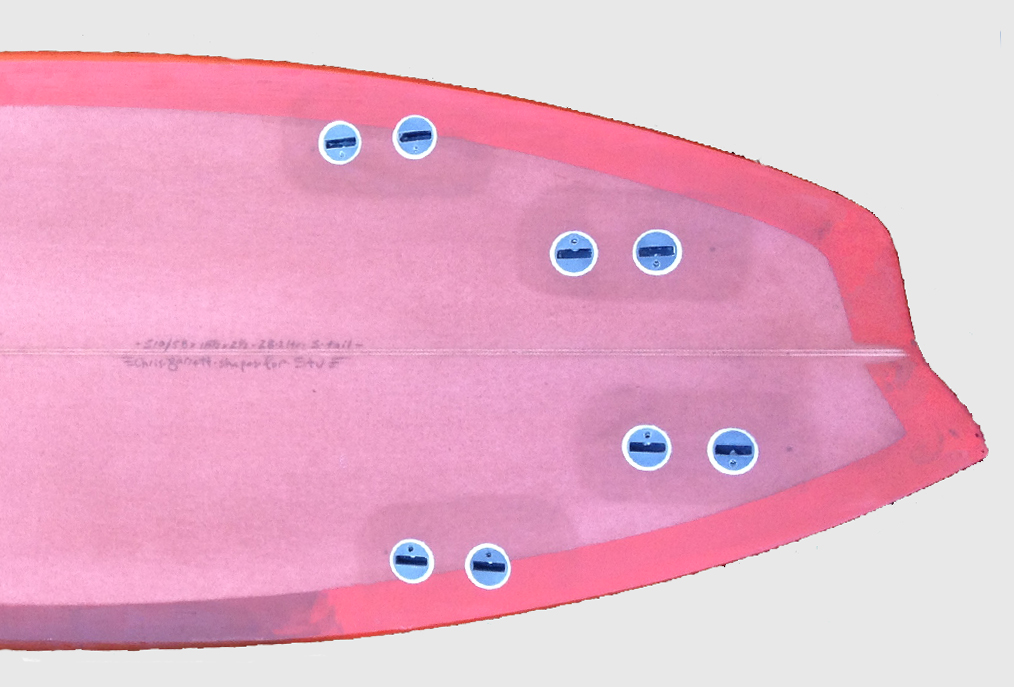

A quick glance at the back end of the board and things appear skewif. The response I get is no surprise. “Our eyes are trained to search for symmetry,” says Chris. “Symmetry of the face, for instance. It's what defines beauty. And so boards that are symmetrical look good. We cant avoid that.”

While Chris can't alter people's reactions he can, and does, avoid being beholden to them. Working under his own label (Phantom surfboards) and also shaping for Deus ex Machina, Chris has made a name for himself with left field creations. He's the Johnathon Livingstone Seagull of the surfboard industry: avoiding the pack, following his own intuition, and challenging normative behaviour – such as symmetrical boards.

“We don't stand with our feet straight across the stringer,” says Chris bluntly, “they're at an angle.” And if you want another justification for asymmetry Chris says to simply look at your hoof, “One end has five little round things hanging off it, the other end a great round sole.” The pressure applied varies from one side of the board to the other.

And that is the key to asymmetrical thinking; a design that matches the physical peculiarities of the human body to those of the breaking wave. In this instance Chris shaped a board for a natural foot surfer to ride on a right hand point break.

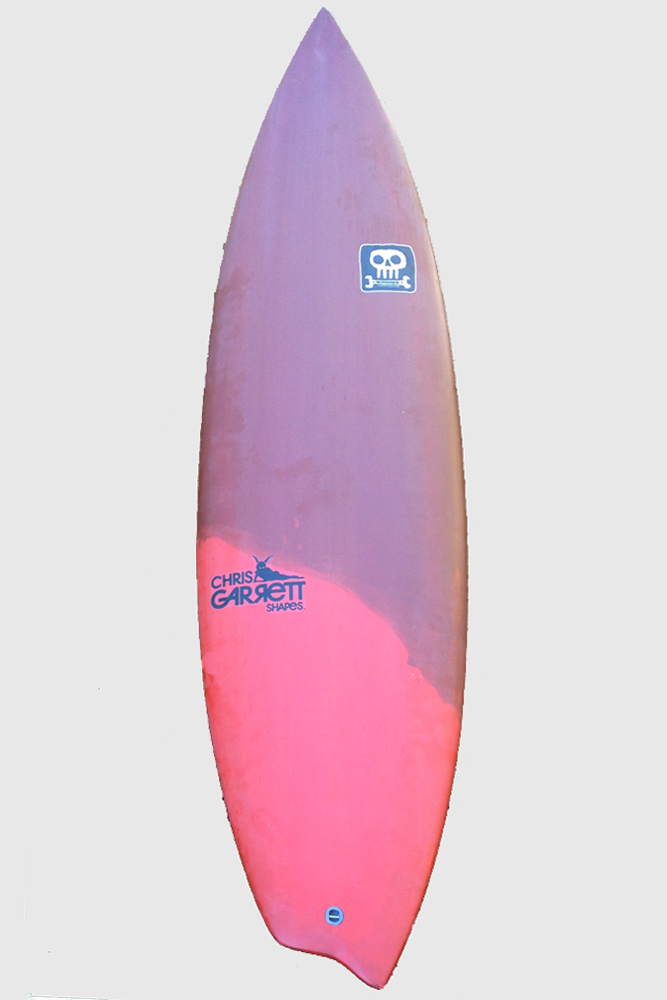

2_23.jpgI'd considered buying an asymmetrical board for at least three years, however my curiosity was always beaten down by rationality. Why risk $700 on an experiment? So when I finally got one I was as fixated as any car park rubberneck. Hours were lost pondering the flow of water over fibreglass, or how fin positioning changes a board's performance.

Early surfs were spent with my antennae twitching, keenly feeling for the board's nature. However, it wasn't nearly as dramatic as three years of wondering had built it up to be. Everything I'd spoken to Chris about, the board subsequently did: it drove off the toe side, turned sharp off the heels. The initial feeling was similar to swapping a longboard for a shortboard; the first few waves feel particularly loose - that was how heel side turns felt in relation to toe side - until you instinctively adjust and it feels normal.

Similarly, there was no weirdness swapping from heel side to toe side. When pumping down the line, for instance. Although the fins on the heel side were two inches forward, they were the same distance from the rail as the fins on the toe side - each fin cluster related to the rail in the same way. And this aspect is crucial in respect to, say, the anything-goes asymmetry of Ryan Burch where Burch might whack one fin on this side and two fins on the other, or any combination that takes his fancy.

“Surfing is all fin and edge,” says Chris. “So if you get that formula right [as you can with asymmetry] you get an instant advantage.” It takes a particular kind of surfer though. Not necessarily one blessed with talent but with curiosity. “If you open your mind to it you remove the mental stumbling block and anything is possible,” says Chris.

Carl Ekstrom is considered the grandfather of asymmetrical boards yet many shapers I spoke to had their own epiphany independent of the forward thinking San Diegan. For Garrett it was a trip to Gnaraloo six years ago. “It's an intense wave,” says Chris, “so I wanted to get the best out of my boards and that meant driving off the bottom and more sensitivity and sharper turning off the top. When I rode it I got that instant advantage.”

In the weeks following that first surf I had many more sessions, some in small beach breaks. And that led to a surprise I hadn't considered: the board also worked in small lefts. The words of Terry Fitzgerald were never more astute: “Everything works. Just some things work better than others.” But of course! The design objective was still apparent, the board wanted to turn tightly off the bottom, but it was of little hindrance – a heel side turn is a heel side turn.

On Swellnet the other day I was asked a question about the board: “Is it better or just different?” I'm still stuck for an answer. Like Phaedrus trying to define quality I can't make a clear distinction, though in the month since receiving it I'm yet to ride any other board. In an oblique way I think that answers the question.

If a more definite answer is required then Tom Carroll has it. While surfing Snapper recently he caught a few waves on one of Chris' 5'4”/5'9” asymmetricals. TC was surprised by the odd looking board but after a good workout gave it a positive assessment: “This board goes really, really good.”

“You've just got to open our mind to asymmetricals,” says Chris. “Tom did.”

Chris Garrett Shapes

Comments

udo's picture
udo's picture
udo Wednesday, 24 Jun 2015 at 5:54pm

Nice board, any reason it has the old style fin plugs.

lostdoggy's picture
lostdoggy's picture
lostdoggy Wednesday, 24 Jun 2015 at 6:09pm

{A quick glance at the back end of the board and things appear skewif. The response I get is no surprise. “Our eyes are trained to search for symmetry,” says Chris. “Symmetry of the face, for instance. It's what defines beauty. And so boards that are symmetrical look good. We cant avoid that.”}

Where did Chris get his idea that symmetry of the face defines beauty?
That's a load of crap.

Nice board; very keen to try one at some stage.

pointy's picture
pointy's picture
pointy Sunday, 28 Jun 2015 at 8:34pm

"Where did Chris get his idea that symmetry of the face defines beauty?
That's a load of crap."

according to this faces are not even symmetrical

http://www.abc.net.au/science/articles/2013/02/12/3687902.htm

memlasurf's picture
memlasurf's picture
memlasurf Wednesday, 24 Jun 2015 at 6:27pm

I wonder what he would shape if you were a natural footer (as you are) and wanted a board that went well in left-handers like the Bukit in Bali? Same board because the asymmetry is related to being natural or goofy not the way the wave breaks? No so keen on the old school looking glass job looks to backyard 70's for me (I was there they were crap).

stunet's picture
stunet's picture
stunet Thursday, 25 Jun 2015 at 10:45am

Rather than asking natural or goofy, Chris always shapes the longer edge to go into the wave face (i.e for bottom turns) and the shorter edge for off the tops and cutties.

I used the toe side/heel side distinction 'cause I wasn't sure how else to describe it. I guess I also brought my own ideas and expectations to the project.

The glass job? Ha ha...love resin tints, but then I wasn't there in the 70s.

mibs-oner's picture
mibs-oner's picture
mibs-oner Wednesday, 24 Jun 2015 at 7:14pm

I still don't understand these stu. I'm not trying to hang shit on you or the board I have just never seen high performance surfing on an asymmetrical.
Please excuse the ignorance, I'm stuck in my ways and have no interest in trying one but if you have a link to some footage of someone proper shredding on an asym I'm keen to see it

stunet's picture
stunet's picture
stunet Thursday, 25 Jun 2015 at 9:33am

You don't have to apologise Mibs, I know you're not having a go. I think the reason we don't see CT surfers on them is those guys want a neutral board under their feet. Also, Top 34 surfers have much better technique and body mechanics than regular punters could ever hope to have. They can readily overcome backside/frontside differences. There's also the issue of an unwillingness to experiment with boards too much. K Slater being the exception.

When Memla asked me if the board is 'better or just different' I was genuinely stumped. If he asked if it feels better my answer would've been unequivocal: Yes! It feels fucken great.

And I suppose that's what I'm chasing at the moment - a feeling. It feels very different, and the byproduct is that it's opened the door to an aspect of board design that I'd long wondered about. I'm gonna save my coin and get another one 2-4 inches longer as a step up up for bigger waves.

carpetman's picture
carpetman's picture
carpetman Thursday, 25 Jun 2015 at 12:38pm

I remember hearing something about Ace or someone riding an Assym at chopes. Although I don't think it was quite as exaggerated as the board above. Anyone know anything about this?

billie's picture
billie's picture
billie Thursday, 25 Jun 2015 at 2:43pm
carpetman wrote:

I remember hearing something about Ace or someone riding an Assym at chopes. Although I don't think it was quite as exaggerated as the board above. Anyone know anything about this?

Think it was Andy Irons at chopes. So slightly assymetrical.

carpetman's picture
carpetman's picture
carpetman Thursday, 25 Jun 2015 at 2:52pm

Thanks, and apparently Josh Kerr at chopes in 2014 according to Donald Brink.

mibs-oner's picture
mibs-oner's picture
mibs-oner Thursday, 25 Jun 2015 at 3:00pm

Wow. I'm shocked, impressed and surprised all at once. You won't see KS on one out there though just in case he decides to go right ;)

stunet's picture
stunet's picture
stunet Thursday, 25 Jun 2015 at 10:23am

And also, I don't heap this board into the 'alternative' category. I wanted a HPS and it rides like one too.

udo's picture
udo's picture
udo Wednesday, 24 Jun 2015 at 7:43pm

The rush of the continuous rhythm Ryan Birch : vimeo
This vid is fucking good ...Gland and Desert pt.

goofyfoot's picture
goofyfoot's picture
goofyfoot Wednesday, 24 Jun 2015 at 8:04pm

Shit yeah that clip is so good

udo's picture
udo's picture
udo Wednesday, 24 Jun 2015 at 8:22pm

Would love to ask Ryan what sort of shape / length board and fin config he would ride at Ulu this Sat.

goofyfoot's picture
goofyfoot's picture
goofyfoot Wednesday, 24 Jun 2015 at 9:58pm

Ask him on Instagram?

ACB__'s picture
ACB__'s picture
ACB__ Thursday, 25 Jun 2015 at 9:09am

Agreed.

udo's picture
udo's picture
udo Wednesday, 24 Jun 2015 at 7:45pm

Mibs ,what did you think ?

mibs-oner's picture
mibs-oner's picture
mibs-oner Thursday, 25 Jun 2015 at 1:40pm

That dude shreds there's no doubt about it. I get the feeling watching him though as if he enjoys riding single fins. Besides a handful of big turns off the top that's the way it looks like he surfs. That's cool if you like that kind of thing. I can't get into it personally. In saying that it's a nice change to the 100 air revs in every other video part but i'd still rather watch a modern style over an old school influence

brutus's picture
brutus's picture
brutus Wednesday, 24 Jun 2015 at 10:18pm

Asymetrics..carl ekstrom patent...1963.......been riding asymmetric bds and Towbds for about 7 years......Ryan Burch really pushing the limits on his bds.....sponge for input and an amazing surfer..........amazing shaper....and he's just starting......its really interesting to try and get the bd design adapted to forehand and back hand.......a new frontier.... BEEN RIDING EM AT BELLS FOR ABOUT 7 YEARS......long bottom turns shot radius top turns.......asymmetric fin set ups......

yogii's picture
yogii's picture
yogii Wednesday, 24 Jun 2015 at 10:49pm

Interesting concept...

Can I ask Stu did you buy the board or was it given to you?

morris's picture
morris's picture
morris Thursday, 25 Jun 2015 at 6:40am

Cash for comment??? :)))

stunet's picture
stunet's picture
stunet Thursday, 25 Jun 2015 at 9:21am

morris wrote:

Cash for comment??? :)))

Sorry to disappoint Shaun/Morris but your big gotcha moment is gonna have to wait.

morris's picture
morris's picture
morris Thursday, 25 Jun 2015 at 9:38am

You misread my comment stu, it was yogii who alluded to the slur on your journalistic integrity and I was defending it, cash for comment, really, how laughable yogi . But see what you want to see.
The names Morris.;)

yogii's picture
yogii's picture
yogii Thursday, 25 Jun 2015 at 10:56am

Not a slur - it was fair question.

stunet's picture
stunet's picture
stunet Thursday, 25 Jun 2015 at 9:20am

Given to me - was a birthday present. I asked Chris if it was OK to do a review as he had no idea beforehand and I get the feeling he's not the kind of fellow who puts his work out there that way.

wellymon's picture
wellymon's picture
wellymon Wednesday, 24 Jun 2015 at 11:52pm

How wide, how thick Stu?
The nose has real asymmetrical shape, with the tail being symmetrically pointy for those big waves;)
Cool stuff.
Like.

stunet's picture
stunet's picture
stunet Thursday, 25 Jun 2015 at 10:41am

Hey Welly,

It's 5'8"/5'10" x 18 1/2 x 2 1/2 - 28.2 litres.

...and it's very cool.

the-roller's picture
the-roller's picture
the-roller Thursday, 25 Jun 2015 at 8:56am

Is that craft as sic as or what?.. .

suggestion to the creator.... the only thing left for you to do is to get this cat to do a solid review/vid.

Yew!

hovercraft's picture
hovercraft's picture
hovercraft Thursday, 25 Jun 2015 at 9:55am

double thumbs up on the ryan birch stuff...

saltman's picture
saltman's picture
saltman Thursday, 25 Jun 2015 at 11:58am

Assymetrics make a lot of sense to me as a surfer
The fact they don't lend themselves easily to mass production and sales - (that is there is extra work involved and you would have a model for goofy and naturals ) provides another opportunity for the more involved shaper to differentiate himself

ACB__'s picture
ACB__'s picture
ACB__ Thursday, 25 Jun 2015 at 1:29pm

What happens if you go left? Or a roundy when you're on that other, shorter rail?? Is it hard to draw it out or is it too snappy?

My view is while having different boards for different conditions is necessary, I think having different boards for different directions on different waves is getting very picky and becoming a very expensive hobby!!

stunet's picture
stunet's picture
stunet Thursday, 25 Jun 2015 at 2:10pm

It's fine. I haven't had it out in big lefts but have caught plenty of beachie lefts up to, say, 5 foot and haven't had a problem. It's got a proclivity toward vertical on backside bottom turns because it wants to turn sharp. In driving waves I imagine it might lack the necessary down the line muscle.

For the last month it's been the only board I've had in my car when hunting waves. Taken it out in anything and really enjoying it.

stunet's picture
stunet's picture
stunet Thursday, 25 Jun 2015 at 2:11pm
udo's picture
udo's picture
udo Thursday, 25 Jun 2015 at 2:22pm

Time to play around with some Cdrive fins Stu.....youll get that drive but still be able to go vert.

Noticed Birch uses Lokbox system on some boards for a bit of fin adjustment.

stunet's picture
stunet's picture
stunet Thursday, 25 Jun 2015 at 2:22pm

You kidding me? I was just thinking about them this morning. Mind reader!

Fella lives at Manly I think, or at least he used to. I might buy a set.

udo's picture
udo's picture
udo Thursday, 25 Jun 2015 at 2:25pm

Freshwater ...Troy.

stunet's picture
stunet's picture
stunet Thursday, 25 Jun 2015 at 2:27pm

Cool. Cheers Udo.

banana's picture
banana's picture
banana Thursday, 25 Jun 2015 at 3:27pm

Asyms are great for something different. I've only had 2 surfs on mine so far; but love it already. Not High performance but super fun!
https://instagram.com/p/4HCUQ_TTi_/

Cop a bit of grief on the outline, just don't overthink it!!!

stunet's picture
stunet's picture
stunet Thursday, 25 Jun 2015 at 3:29pm

Woah! Looks like it melted in the sun.

Craig's picture
Craig's picture
Craig Thursday, 25 Jun 2015 at 3:45pm

Haha, how that's a bit more extreme :o



5'5 1/2" Wonky Donkey asym with a side cut by @hiltonfletcher #hiltonfletcher #asymmetrical #surfboard

A photo posted by boardporn (@boardporn) on

Craig's picture
Craig's picture
Craig Thursday, 25 Jun 2015 at 3:47pm

cory's picture
cory's picture
cory Friday, 26 Jun 2015 at 8:23pm

Chris Garrett is possibly Australia's most underrated shaper/designer... I love what he was doing with his finless boards a couple of years ago. Your a lucky man Stu!

stunet's picture
stunet's picture
stunet Friday, 3 Jul 2015 at 12:30pm

Hydroflex currently have a very cool little vid on Carl Ekstrom gracing their FB page. Worth a watch for those curious:


Carl Ekstrom: Surfboard Designer

We are very fortunate to call Carl a friend and be able to work closely with him on Boards. Our First Signature Series board is with his Iconic Asymmetrical designFind out a bit more about Carl here.

Posted by Hydroflex Surfboards on Thursday, July 2, 2015
stunet's picture
stunet's picture
stunet Monday, 6 Jul 2015 at 12:37pm

Vintage Surfboard Collector page on FB has a couple of cool photos of an AB asymm (Photos Kieran McKinnon):


udo's picture
udo's picture
udo Monday, 6 Jul 2015 at 7:47pm

Swaylocks , general discussion pg 2 has a bit on assym fins and placement.

udo's picture
udo's picture
udo Thursday, 16 Jul 2015 at 7:05pm

Stu ,Brutus has been using C-drives in his assym Quad..
MC surfboards instagram
ride report Brutus ?

stunet's picture
stunet's picture
stunet Thursday, 16 Jul 2015 at 7:09pm

Yeah I contacted Troy but he doesn't have any quad sets at the moment, says he'll have some later in the year. I'll buy and test a set then.

udo's picture
udo's picture
udo Thursday, 16 Jul 2015 at 7:15pm

October I think.............made offshore ?.....surely not...I hope not.

caml's picture
caml's picture
caml Thursday, 16 Jul 2015 at 11:50pm

Hes looking 4 em 4

caml's picture
caml's picture
caml Thursday, 16 Jul 2015 at 11:51pm

Get a thruster set then

caml's picture
caml's picture
caml Friday, 17 Jul 2015 at 12:03am

And use some 3.75 quad rear fins & hey presto it frips

udo's picture
udo's picture
udo Tuesday, 6 Oct 2015 at 4:12pm

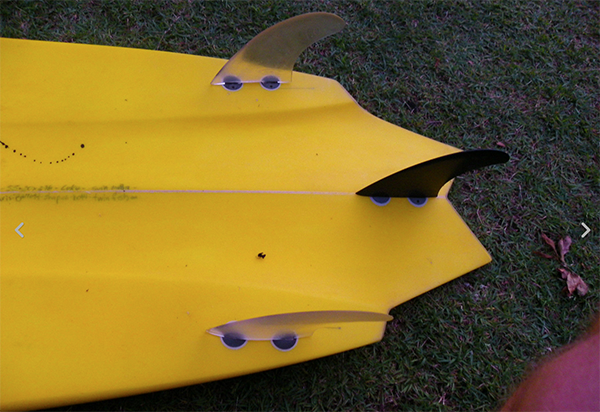

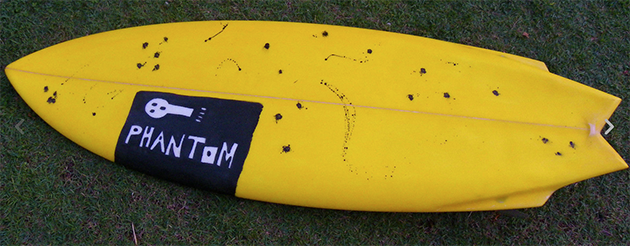

Not a asymm but a wild looking little 5'5 Chris Garrett 'Phantom' on ebay .

stunet's picture
stunet's picture
stunet Tuesday, 6 Oct 2015 at 4:24pm

Wicked looking board! If I had some spare coin I'd snappy that puppy up pronto...



ACB__'s picture
ACB__'s picture
ACB__ Tuesday, 6 Oct 2015 at 5:02pm

That'd be the best summer board ever. nice and wide and thick. I love my swallow tails.

stunet's picture
stunet's picture
stunet Tuesday, 6 Oct 2015 at 4:37pm

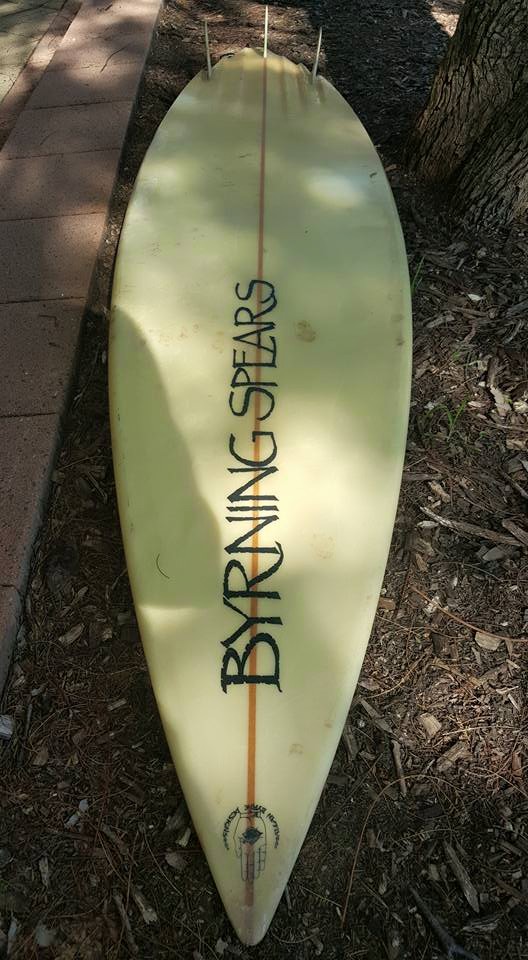

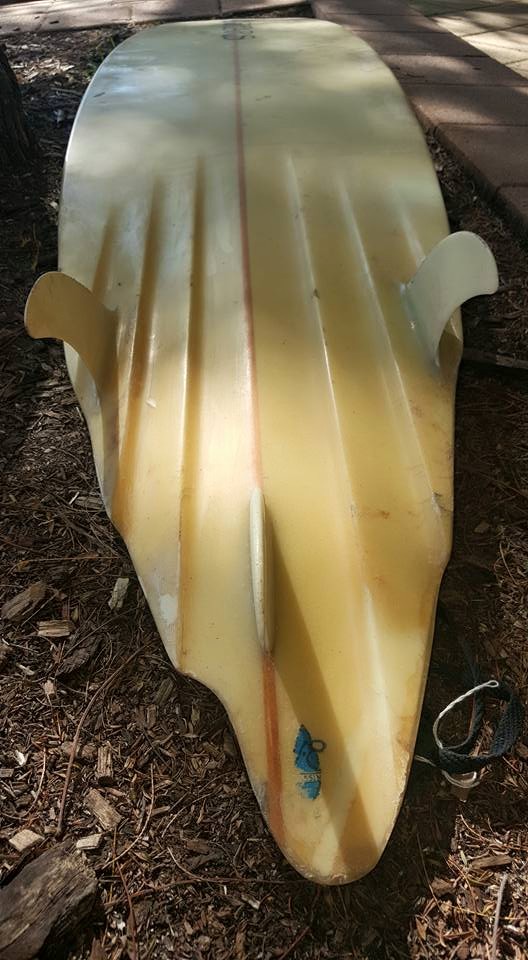

Dale Wilson keeping the Byrning Spears assym tradition alive:


udo's picture
udo's picture
udo Monday, 26 Oct 2015 at 6:47pm

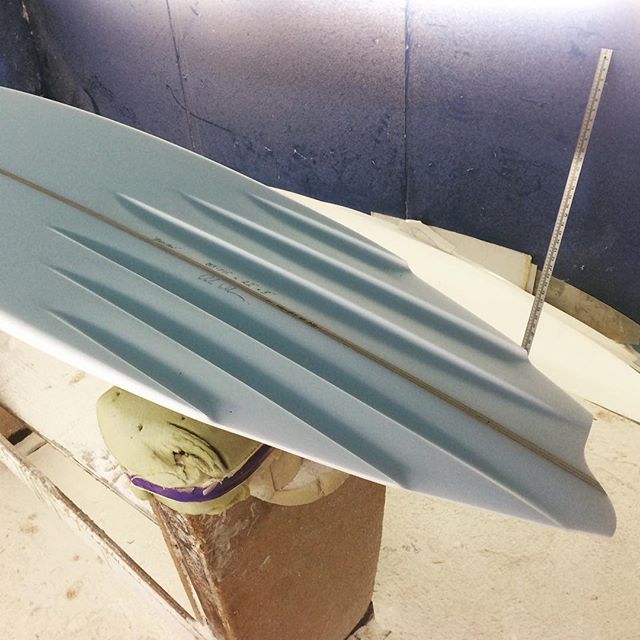

@donaldbrink insta for some more assyms and Very different bottom contours.

udo's picture
udo's picture
udo Friday, 29 Jan 2016 at 4:18pm

Shape shifter surfboards - pintail to squash to swallow to assymetrical
